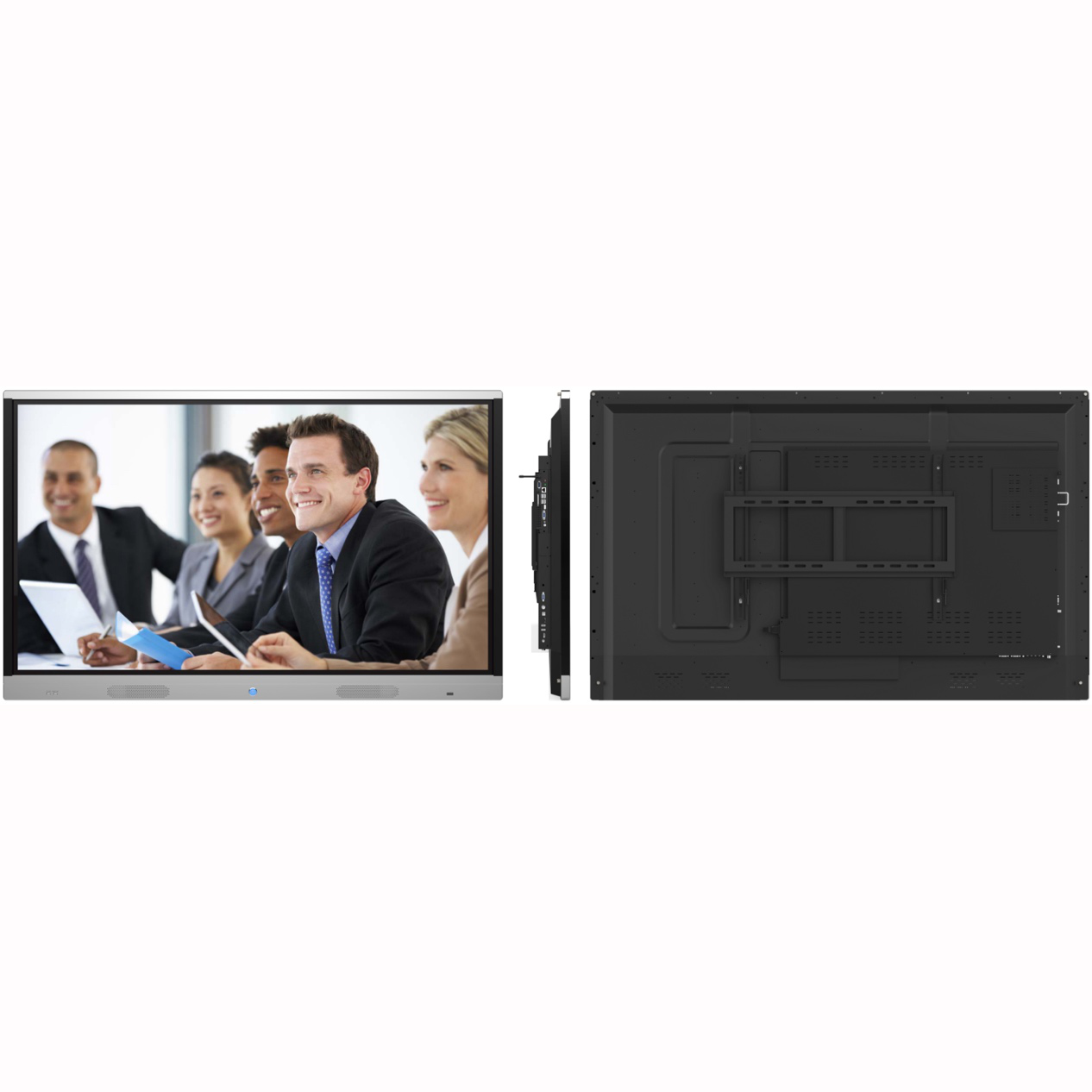

[HQ98MW-DT]98 inch Touch All In One Computer For Education
|
Panel Brand: New A grade LG
Max Resolution: 3840x2160 Aspect Ratio: 16:9
Active Area: 2158.84(H)mm x 1214.352(V)mm
|
|
|
|
|
- Specifications
- 648 Solution
- 848 Solution
| LCD Panel |
Model |
HQ98MW-DT |
| Screen Size |
98" |
| Panel Brand |
LG |
| Backlight type |
DLED |
| Resolution |
3840x2160 |
| Brightnees (typ)/(min) |
350 cd/㎡ (typ.)/Support Auto Adjust |
| Contrast(typ) |
1300:1 (typ.) |
| Response Time |
8ms (typ.) |
| Pixel Pitch |
0.5622(H) mm x 0.5622(V) mm |
| Visual angle |
178 (H) / 178 (V) |
| Life(typ) |
50,000 hrs (min.) |
| Colour saturation(x% NTSC) |
0.65 |
| Display Area |
2158.84(H)mm x 1214.352(V)mm |
| Colors |
10bit 1.07Billion |
| Unit Specs |
Net Weight(KG) |
147 |
| Gross Weight(KG) |
176 |
| Wooden Case(KG) |
226 |

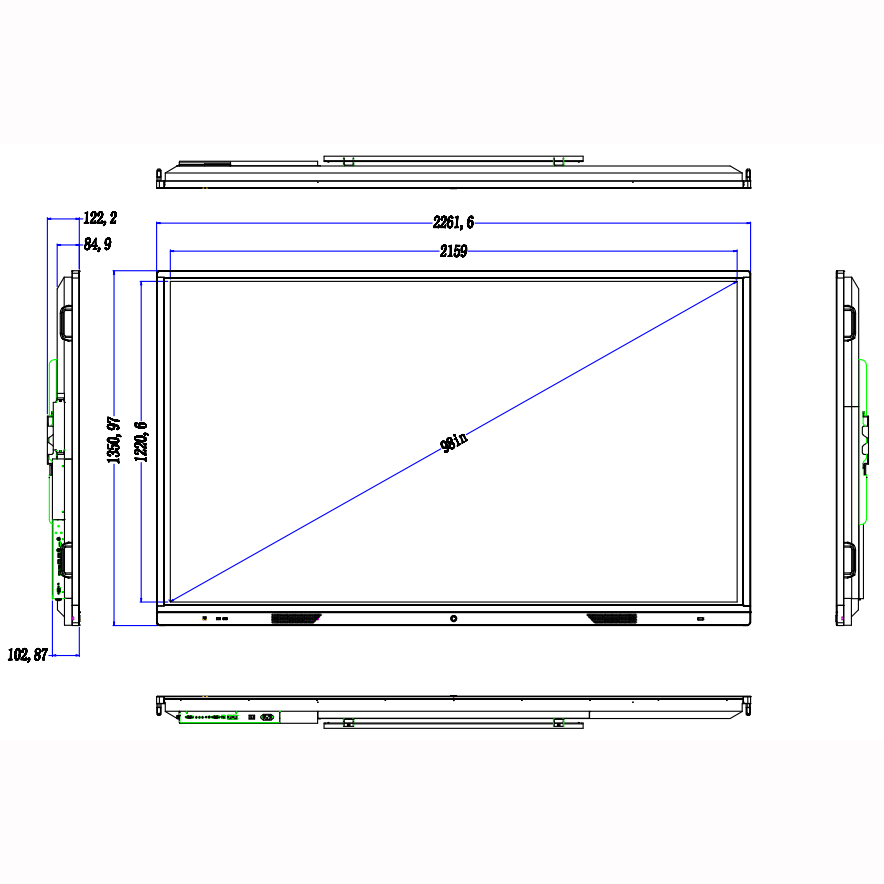

| Unit Dimension |
2261.6 x 102.9 x 1351mm |
| Package Dimension |
2465 x 261 x 1650mm |
| Wooden Case Dimension |
2505 x 301 x 1790mm |
| Power |
Input Voltage |
AC100 V ~ 240 V, 50-60 Hz |
| Power consumption(Watt) |
≤450W |
| Standby (Watt) |
≤0.5W |
| Environmental |
Working temperature (dC) |
0℃～40℃ |
| Storage temperature(dC) |
-20℃～55℃ |
| Storage humidity |
10%～90% RH Non-Condensing |
| Working humidity |
20%～80% RH Non-Condensing |
| Drive Board |
Scalar |
MSD6A648/2G/32G/Android 6.0/Cortex A53*4 1.5GHz |
| Type |
Android+TV Solution |
| Front Interfaces |
USB-A 2.0*2 |
| Rear Interfaces |
HDMI*2 , USB2.0*2 ， TF Card*1 , AV in*1 , RJ45*1 , VGA in*1 ， VGA Audio*1，RS232*1 , YPBPR*1 , SPDIF out*1 , Earphone*1 , Touch USB -B*1 , AV OUT*1 , RF*1 |
| Front OSD keys |
Power Button |
| Support file format |
Photo：JPEG、BMP、PNG
Video：MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Audio：MPEG1/2 layer I/II,AAC-Lc,WMA.... |
| Menu |
OSD Language |
En / Chinese/Etc. |
| |
| OPS PC |
OPS Mini PC (180mm x 195mm x 42(30)mm) Intel Standard 80pins |
| CPU |
Intel Core i3/i5/i7 |
| RAM |
DDR4 2400Mhz 8G |
| Graphics |
Intel HD Graphics |
| Storage |
128G SSD(Other capacity optional) |
| Interfaces |
Based on solutions |
| LAN |
1*Gigabit LAN（RTL8111E） |
| WLAN |
Support 802.11b/g/n |
| AUDIO |
Realtek® High Definition Audio |
| Environment |
temp：-20~60℃ humidity：0~85%RH |
| Power |
DC19V 4.7A |
| OS System |
Support Windows 7/ Windows XP/ Windows 2000 / Linux UNIX / Windows 8.1(X86) Remark:OEM exports, default: no OS system when the goods are dispatched,
Shall be installed by the customer |
| |
| Touch Panel |
20P IR Multi-touch Frame |
| Features |
l *True Multi-touch points, without drift and blind spot
l *Supported true Multi-touch points number : Max 20 points
l *Intelligent waking up function
l *Supported OS: Windows 8/7/Vista/XP, Linux, Android, Mac OS X, Android etc.
l *Supporting TUIO, Flash and any other customer protocols
l *Excellent fault tolerance and high reliability |
| Touch Specs |
Response Time |
First click<10ms |
| Repeated click<6ms |
| System Stability |
No drift,no change with the environment |
| Min Touch Diameter |
> 3mm |
| Touch Accuracy |
± 2mm on more than 95% touch area |
| Protocols |
TUIO, Flash, Windows 8/7 Multi-touch HID, Mac OS X HID and customized protocols |
| Supported OS |
Windows 8/7/Vista /XP, MAC OS X, Linux, Android |
| Optical Specs |
Luminousness |
Default with tempered glass(AG / AR glass Optional); 100% without glass,90% with tempered glass, 92% with AR glass, |
| Reliability |
Temperature |
Working: -20℃~60℃ |
| Storage: -40℃~85℃ |
| Relative Humidity |
Working Humidity: 10%~90%RH |
| Storage Humidity: 10%~95%RH |
| Electrical |
Operating Voltage |
+5VDC (range +4.75V~+5.25V) |
| Power Supply Mode |
USB power supply |
| Power Consumption |
0.5~1.5W |
| Electrostatic Protection Grade |
Air discharge +4KV, contact discharge +2KV |
| Interface |
USB 2.0 (full speed), A type plug |
| Mechanical |
Input Method |
Fingers, stylus, gloves or any other opaque material medium |
| Touch Activation Force |
No need |
| Safety |
Different tempered glass escan be selected atthere quest of safety grade |
| Noise |
No |
| Surface |
ABS Plastics |
| Remark |
|
| accessory |
Remote Controller *1；Power Cable（1.5M） *1；Touch Pen *2 |
| Applications |
Free whiteboard software for Android |
| Remark |
Product Specifications are subject to change without notice |
| Drive Board |
Scalar |
MSD848/3G/32G/Android 8.0 |
| Type |
Android+TV Solution |
| Front Interfaces |
Touch USB-B *1 , USB2.0*3 , HDMI IN*1 |
| Rear Interfaces |
HDMI*2,HDMI OUT*1(Optional) ,USB2.0*2 ,TF Card*1, AV in*1, RJ45*1, VGA in*1,
VGA Audio*1,RS232*1,RF*1，SPDIF out*1,Earphone*1,Touch USB-B *1,MIC IN*1 |
| Front OSD keys |
Power Button, Video Source, System Menu, Vol+, Vol-, ECO, Android Desktop, OPS Desktop |
| Support file format |
Photo：JPEG、BMP、PNG
Video：MPEG1、MPEG2、MPEG4、H264、RM、
RMVB、MOV、MJPEG、VC1、DivX、FLV
.avi\.mpg\.dat\.vob\.div\.mov\.mkv\.rm\.rmvb
\.mp4\.mjpeg\.ts\.trp\.wmv\.asf\.flv
Audio：WMA、MP3、M4A（AAC） wma\.mp3\.m4a |
| Video Feature |
Display mode |
Normal, Soft, Users, Dynamic |
| |
3D digital comb filter, 3D image noise reduction, 3D motion adaptive comb filter, etc |
| Menu |
OSD Language |
En / Chinese/Etc. |
| |
| OPS PC |
OPS Mini PC (180mm x 195mm x 42mm) Intel Standard 80pins |
| CPU |
Intel Core i3/i5/i7 |
| RAM |
DDR4 2400Mhz 8G |
| Graphics |
Intel HD Graphics |
| Storage |
128G SSD(Other capacity optional) |
| Interfaces |
Based on solutions |
| LAN |
1*Gigabit LAN（RTL8111E） |
| WLAN |
Support 802.11b/g/n |
| AUDIO |
Realtek® High Definition Audio |
| Environment |
temp：-20~60℃ humidity：0~85%RH |
| Power |
DC19V 4.7A |
| OS System |
Support Windows 7/ Windows XP/ Windows 2000 / Linux UNIX / Windows 8.1(X86) Remark:OEM exports, default: no OS system when the goods are dispatched,
Shall be installed by the customer |
| |
| Touch Panel |
20P IR Multi-touch Frame |
| Features |
l *True Multi-touch points, without drift and blind spot
l *Supported true Multi-touch points number : Max 20 points
l *Intelligent waking up function
l *Supported OS: Windows 8/7/Vista/XP, Linux, Android, Mac OS X, Android etc.
l *Supporting TUIO, Flash and any other customer protocols
l *Excellent fault tolerance and high reliability |
| |
Response Time |
First click<10ms |
| Repeated click<6ms |
| System Stability |
No drift,no change with the environment |
| Min Touch Diameter |
> 3mm |
| Touch Accuracy |
± 2mm on more than 95% touch area |
| Protocols |
TUIO, Flash, Windows 8/7 Multi-touch HID, Mac OS X HID and customized protocols |
| Supported OS |
Windows 8/7/Vista /XP, MAC OS X, Linux, Android |
| Optical Specs |
Luminousness |
Default with tempered glass(AG / AR glass Optional); 100% without glass,90% with tempered glass, 92% with AR glass, |
| Reliability |
Temperature |
Working: -20℃~60℃ |
| Storage: -40℃~85℃ |
| Relative Humidity |
Working Humidity: 10%~90%RH |
| Storage Humidity: 10%~95%RH |
| Electrical |
Operating Voltage |
+5VDC (range +4.75V~+5.25V) |
| Power Supply Mode |
USB power supply |
| Power Consumption |
0.5~1.5W |
| Electrostatic Protection Grade |
Air discharge +4KV, contact discharge +2KV |
| Interface |
USB 2.0 (full speed), A type plug |
| Mechanical |
Input Method |
Fingers, stylus, gloves or any other opaque material medium |
| Touch Activation Force |
No need |
| Safety |
Different tempered glass escan be selected atthere quest of safety grade |
| Noise |
No |
| Surface |
ABS Plastics |
| Remark |
|
| accessory |
Remote Controller *1；Power Cable（1.5M） *1；Touch Pen *2 |
| Applications |
Free whiteboard software for Android |
| Remark |
Product Specifications are subject to change without notice |
|
|
|
|
|
