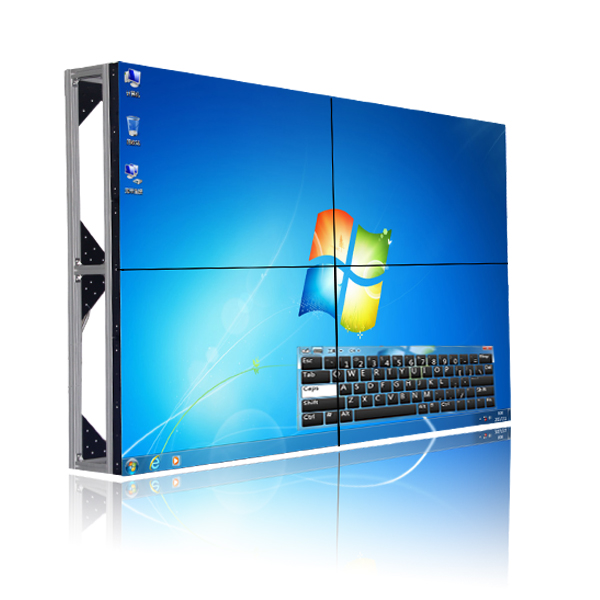

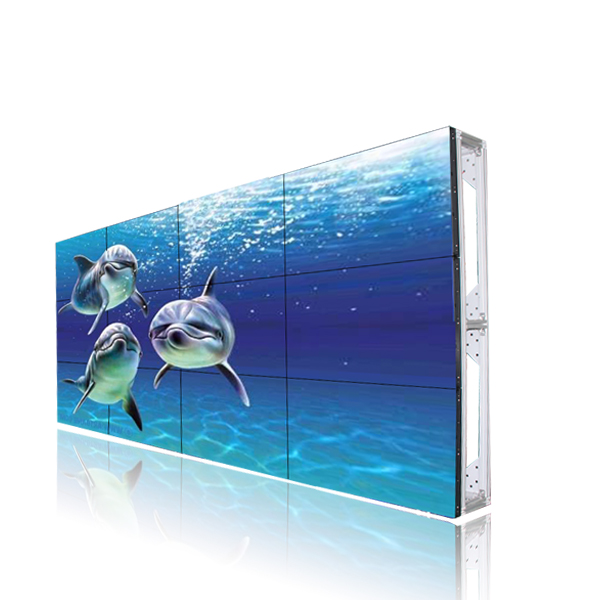

[HQ420-V]42 inch LCD Video Wall

Panel Brand: New A grade SAMSUNG
Max Resolution: 1920x1080 Aspect Ratio: 16:9
Active Area: 930.25mm(H) x 523.01mm(V)

Max Support 9pcs(H) x 9pcs(V) Matrix

  • LCD Panel
  • Input & Output
  • Specification
  • Project
  • Applicable Fields
Panel Size(Diagonal) 42 inch(with narrow bezel 27mm)
Display Area(HxV) 930.25mm x 523.01mm
Display Colors 16.7M
Resolution 1920 x 1080
Contrast Ratio 3000:1
Brightness(cd/m2) 700
Responsive Time <=6ms
Viewing Angle(H/V) 178°/178°
Life Time(minimum) 60,000 hours
Video Input VGA/DVI/HDMI
AV/S-VIDEO/YPbPr
Audio Input Audio
1(Option)
2 (BNC×2)
Voltage AC100V~240V, 50/60Hz
Max Power Consumption 210 Watt
Standby Power Consumption <= 3 Watt

Input CVBS 3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs
VGA 1* D15 port, support SVGA/XGA/WXGA
YPbPr 1* YPbPr Input, Support PAL/NTSC
Y/C 2* BNC inputs, support PAL/NTSC
Output LVDS Support single or double LVDS output, and WUXGA(1920*1080)
Operate Mode Panel key operation(Need customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering Software Customized
Temperature  -20℃~50℃
Humidity 5% ~ 95%
Power Supply AV100V ~ 240V, 50/60Hz
Power Consumption Max 300W,according to different screen models
processor Size 307×282×53.8(mm)
Weight About 15KG

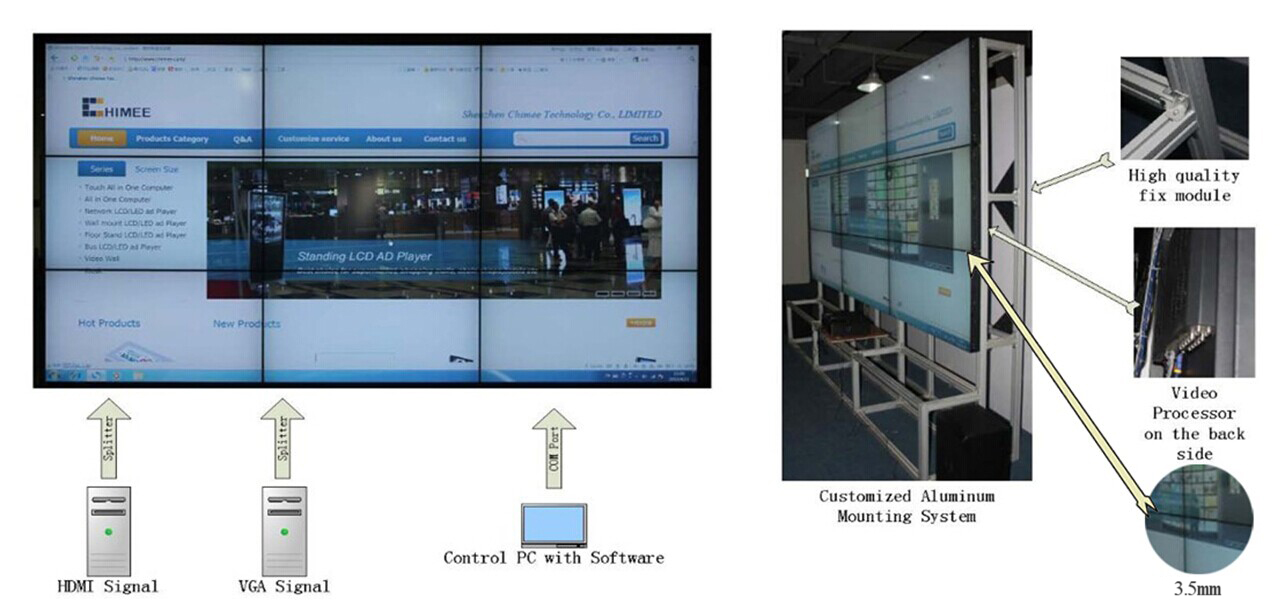

video wall.jpg
Business Organizations supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops, etc.
Non-profit Organizations Telecommunications, post offices, hospital, schools, etc.
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc.
Real Estate Property Apartments, offices, commercial buildings, model rooms, property brokers, etc.
Entertainments Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc.
