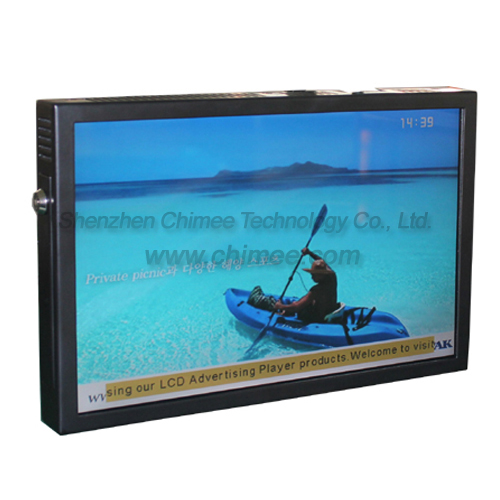

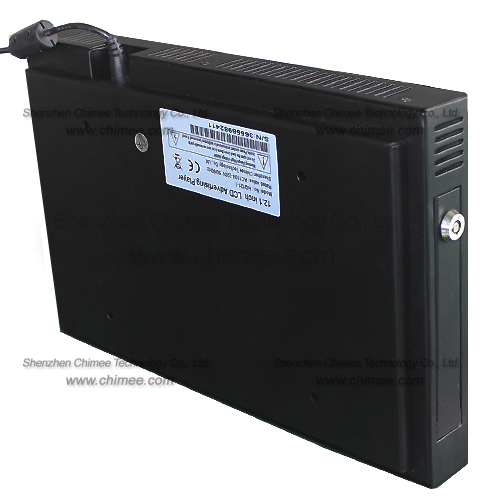

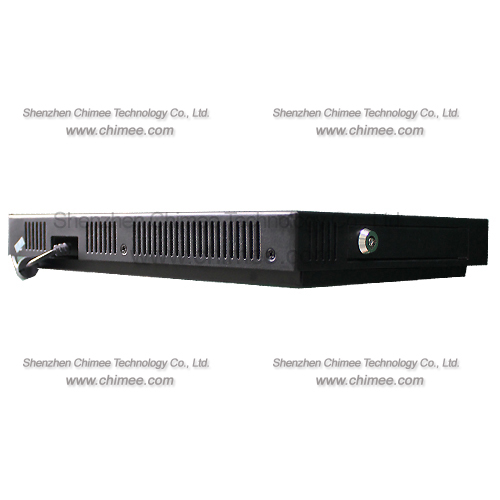

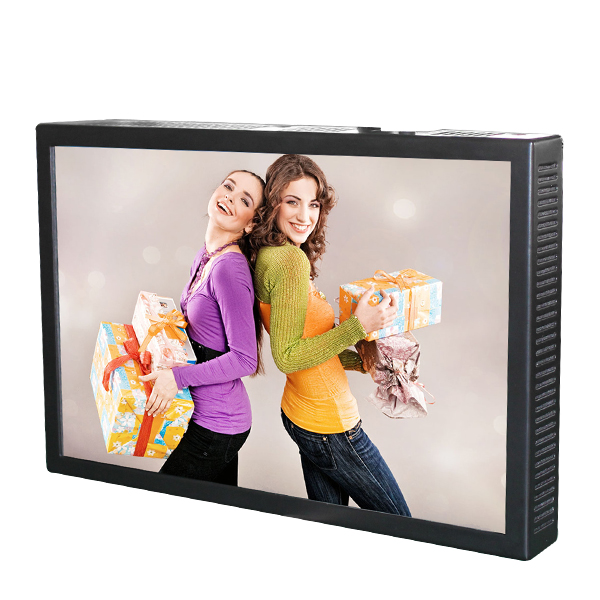

[HQ121-1-N]12.1 inch Network LCD advertising player
|
Panel Brand: New A grade SAMSUNG
Max Resolution: 1280x800 Aspect Ratio: 16:10
Active Area: 261.12mm(H)x163.2mm(V)
Metal Frame + 2mm Tempered Glass + Super Slim Design
Narrow Bezel
Black or Silver color
|
|
|
|
|
- LCD Panel
- Functions
- Product Features
- NetWork
- Applicable Fields
- Customization
| Panel Size(Diagonal) |
12.1 inch |
| Display Area(HxV) |
264.76mm x 166.60mm |
| Outline Dimension(HxV) |
275.8mm x 178.0mm |
| Display Colors |
262,144 |
| Resolution |
1280 x 800 |
| Pixel Pitch |
0.204 x 0.204 |
| Contrast Ratio |
300:1 |
| Brightness(cd/m2) |
200 |
| Responsive Time |
5ms |
| Viewing Angle(H/V) |
160°/140° |
| Life Time(minimum) |
50,000 hours |
Support wired connection(LAN), wireless connection include Wi-Fi and 3G(WCDMA, TD-SCDMA, CDMA2000) network. |
Support unlimited grouped management. |
| Support unlimited playing list. |
| Support timer function, unlimited time groups can be set to turn on/off the player and manage different volume for the groups. |
| Support screen splitter function. |
| Support Rolling text function. |
| Support LOGO displaying. |
| Support both Vertical and Horizontal mode. |
| AV-in, HDMI-in, ports can be added (Need customize). |
| Built-in HD stereo speakers, 2 x 2w, 2 x 3w, 2 x 5w. |
| Support Full HD1080P media decoding. |
1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.
2.High-class metal material frame, the color can be customized.
3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.
4.IR Motion Sensor can be customized.
5.Build-in anti-thief system included.
6.Wall mounting type can be fixed on the wall by screws.
| Business Organizations |
supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc. |
| Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops, etc. |
| Non-profit Organizations |
Telecommunications, post offices, hospital, schools, etc. |
| Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc. |
| Real Estate Property |
Apartments, offices, commercial buildings, model rooms, property brokers, etc. |
| Entertainments |
Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc. |
1.Color can be customized.
2.Dimension can be customized.
3.Can print Logo on the frame.
4.Can customize the design.
5.Hardware can be customized.
|
|
