Shenzhen Chimee Technology Co., Limtted

Panel Size(Diagonal)	21.995 inch
Display Area(HxV)	473.7mm x 296.1mm
Outline Dimension(HxV)	493.7mm x 320.1mm
Display Colors	16.7M
Resolution	1680 x 1050
Pixel Pitch	0.282 x 0.282
Contrast Ratio	1000:1
Brightness(cd/m2)	250
Responsive Time	5ms
Viewing Angle(H/V)	170°/160°
Life Time(minimum)	50,000 hours

	Solution1	Solution2	Solution3	Solution4
CPU	Intel Atom D525, Dual Core, 1.8Ghz, 1M cache, 45nm Technology	Intel Core i3-2100, 3.1Ghz, 3M Cache, Dual Core, Quad Threads	Intel Core i5-2300, 2.8Ghz, 6M Cache, Quad Core, Quad Threads	Intel Core i7-2600, 3.4Ghz, 8M Cache, Quad Core, 8 Threads
Chipset	Intel NM10 + nVidia ION2	Intel H61 Express	Intel H61 Express	Intel H61 Express
RAM	2G DDR III/1333	DDR III/4G/1333/Up to 16G	DDR III/4G/1333/Up to 16G	DDR III/4G/1333/Up to 16G
HDD	2.5 inch 320G SATA II/SSD from 16G	2.5 inch 320G SATA II/SSD from 16G	2.5 inch 320G SATA II/SSD from 16G	2.5 inch 320G SATA II/SSD from 16G
ODD	DVD/RW/Blue-Ray(Optional)	DVD/RW/Blue-Ray(Optional)	DVD/RW/Blue-Ray(Optional)	DVD/RW/Blue-Ray(Optional)
Audio	HD 8 Channel 7.1 Audio Sub-system	Realtek ALC889 HD(7.1) 8 Channel Codec System	Realtek ALC889 HD(7.1) 8 Channel Codec System	Realtek ALC889 HD(7.1) 8 Channel Codec System
Graphics	nVidia GT 218 integrated/ Full HD 1080P supported	Integrated with CPU or Add-on a dedicated physical Graphics card	Integrated with CPU or Add-on a dedicated physical Graphics card	Integrated with CPU or Add-on a dedicated physical Graphics card
Network interface card	10/100/1000M Gigabyte Ethernet Cotroller	Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller	Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller	Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller
WiFi	150M High Quality WiFi Integrated	150M High Quality WiFi Integrated	150M High Quality WiFi Integrated	150M High Quality WiFi Integrated
Speaker	2 x 5w/10w Built-in Stereo Speakers	2 x5w/10w Built-in Stereo Speakers	2 x5w/10w Built-in Stereo Speakers	2 x5w/10w Built-in Stereo Speakers
Mouse/Keyboard	Wired/Wireless Keyboard(Optional)	Wired/Wireless Keyboard(Optional)	Wired/Wireless Keyboard(Optional)	Wired/Wireless Keyboard(Optional)
OS	Windows XP/Vista/7/Fedora/Ubuntu(Optional)	Windows XP/Vista/7/Fedora/Ubuntu(Optional)	Windows XP/Vista/7/Fedora/Ubuntu(Optional)	Windows XP/Vista/7/Fedora/Ubuntu(Optional)

1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

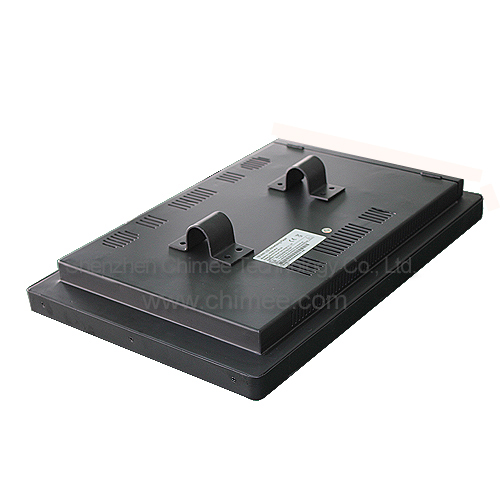

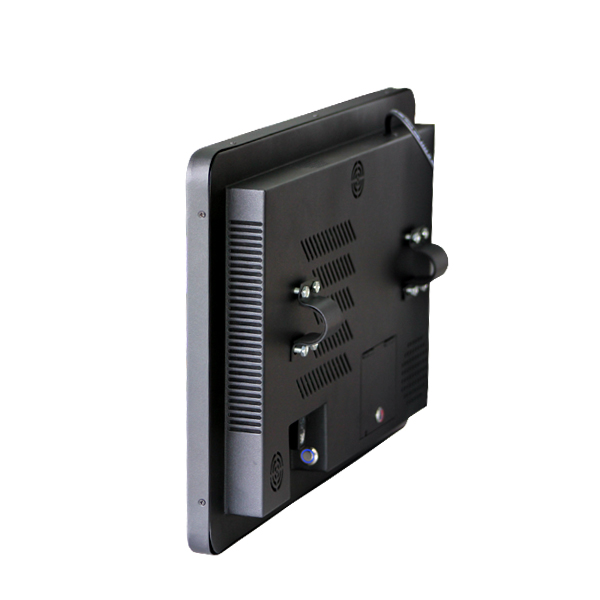

6.With roof mounting bracket or back mounting bracket, special design for buses.

Public Places

Train, Bus, Vehicles, etc.

1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.

5.Hardware can be customized.
