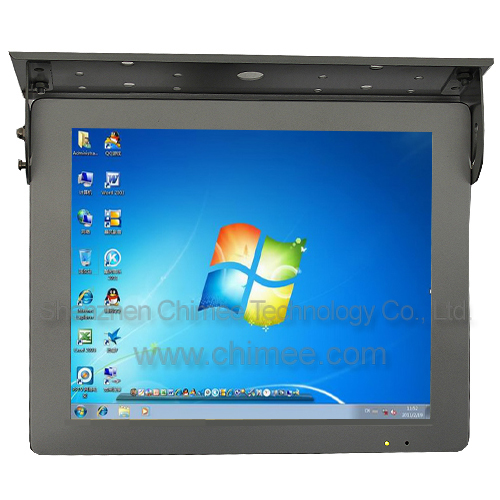

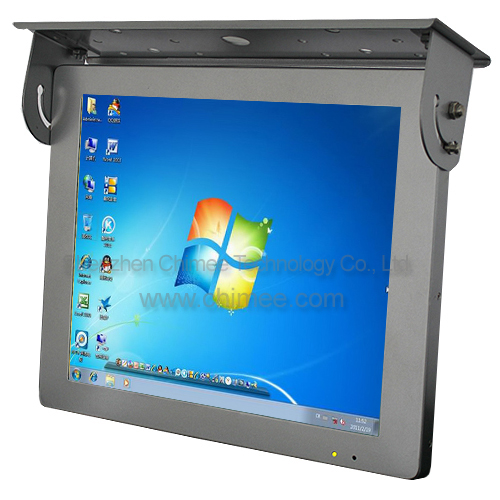

[HQ170B-C4S]17 inch Bus LCD All in One Computer
Panel Brand: New A grade SAMSUNG
Max Resolution: 1280x1024 Aspect Ratio: 4:3
Active Area: 337.92mm(H)x270.336mm(V)
Metal Frame + 2mm Tempered Glass + Roof Mounting
Black or Silver Color
  • LCD Panel
  • Hardware
  • Product Features
  • Applicable Fields
  • Customization
Panel Size(Diagonal) 17 inch
Display Area(HxV) 337.920mm x 270.336mm
Outline Dimension(HxV) 358.5mm x 296.5mm
Display Colors 16.2M
Resolution 1280 x 1024
Pixel Pitch 0.264 x 0.264
Contrast Ratio 450:1
Brightness(cd/m2) 250
Responsive Time 5ms
Viewing Angle(H/V) 170°/160°
Life Time(minimum) 50,000 hours
  Solution1 Solution2 Solution3 Solution4
CPU Intel Atom D525, Dual Core, 1.8Ghz, 1M cache, 45nm Technology Intel Core i3-2100, 3.1Ghz, 3M Cache, Dual Core, Quad Threads Intel Core i5-2300, 2.8Ghz, 6M Cache, Quad Core, Quad Threads Intel Core i7-2600, 3.4Ghz, 8M Cache, Quad Core, 8 Threads
Chipset Intel NM10 + nVidia ION2 Intel H61 Express Intel H61 Express Intel H61 Express
RAM 2G DDR III/1333 DDR III/4G/1333/Up to 16G DDR III/4G/1333/Up to 16G DDR III/4G/1333/Up to 16G
HDD 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G
ODD DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional)
Audio HD 8 Channel 7.1 Audio Sub-system Realtek ALC889 HD(7.1) 8 Channel Codec System Realtek ALC889 HD(7.1) 8 Channel Codec System Realtek ALC889 HD(7.1) 8 Channel Codec System
Graphics nVidia GT 218 integrated/ Full HD 1080P supported Integrated with CPU or Add-on a dedicated physical Graphics card Integrated with CPU or Add-on a dedicated physical Graphics card Integrated with CPU or Add-on a dedicated physical Graphics card
Network interface card 10/100/1000M Gigabyte Ethernet Cotroller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller
WiFi 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated
Speaker 2 x 5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers
Mouse/Keyboard Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional)
OS Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional)



1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

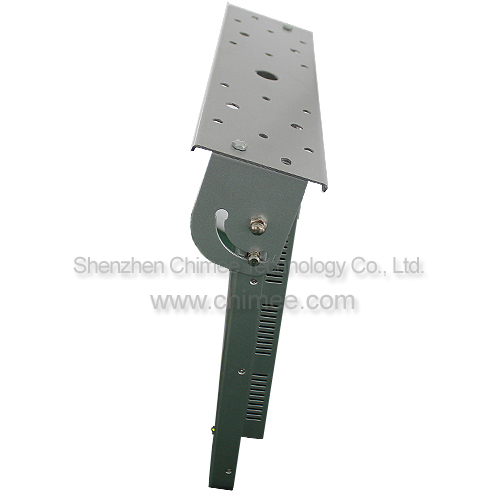

6.With roof mounting bracket or back mounting bracket, special design for buses.

Public Places Train, Bus, Vehicles, etc.





1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.

5.Hardware can be customized.
